DX™ 14 High Frequency Driver
The Peavey DX™ 14 High Frequency Driver is a direct replacement driver for the Peavey DM 112 and DM 115 enclosures.

  • Voice Coil Diameter: 1.35 / 34.3 mm
  • Throat Parameter: .962 / 24.4 mm
  • Nominal Impedance: 8 Ohms
  • Minimum Impedance: 6.7 Ohms
  • DC Resistance: 6.2 Ohms
  • Power Capacity 2000 Hz to 20,000 Hz: 140 W peak, 70 W program, 35 W continuous using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
  • Sensitivity: 103 dB / 1W 1m On-axis on 90(deg) H x 40(deg) V horn
  • Nominal Efficiency: 28%
  • Frequency Response: 1.0 Hz to 20,000 Hz
  • Recommended Crossover: 2000 Hz at 12 dB / Octave
  • Lowest Recommended Crossover: 1500 Hz at 12 dB / Octave
  • Diaphragm: Titanium
  • Voice Coil Material: Copper Clad Aluminum Wire with a High temp Kapton bobbin
  • Dimensions: 3.44 (87.3 mm) diameter x 2.44 (62 mm) depth
  • Horn Coupling Diameter: .962 (24.4 mm)
  • Horn Coupling Threads: Standard 1 3/8 - 18
  • Net Weight: 2 lbs.
  • Shipping Weight: 2 lbs. 4 oz.
  • Diaphragm Kit: N/A
  • Weight Unpacked: 1.98lbs (.9kg)
  • Weight Packed: 2.12lbs (.96kg)
  • Height Packed: 2.75" (7cm)
  • Width Packed: 3.5" (8.9cm)
  • Depth Packed: 5.625" (14.29cm)

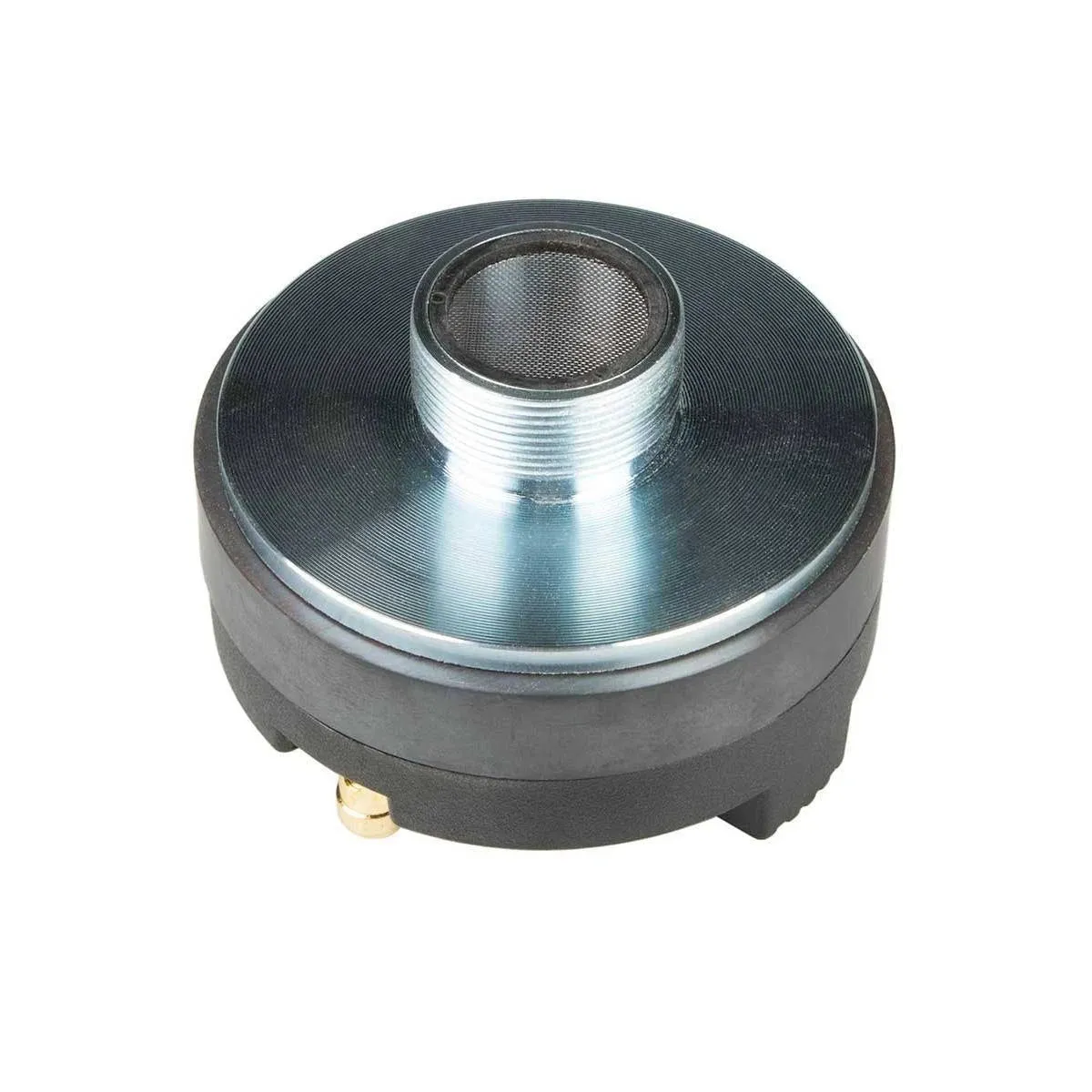

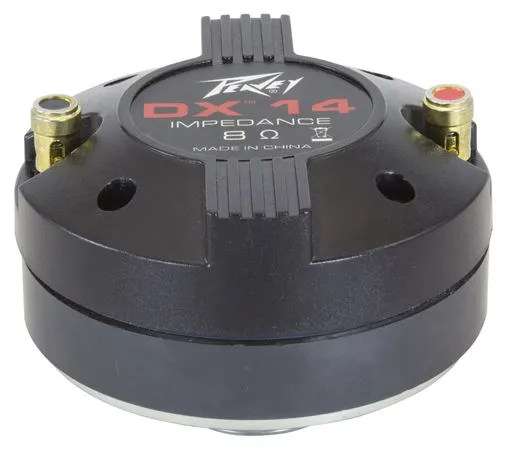

      Peavey DX14 High Frequency Driver
      • DefaultTitle

      $ 0.00

      $ 96.99
