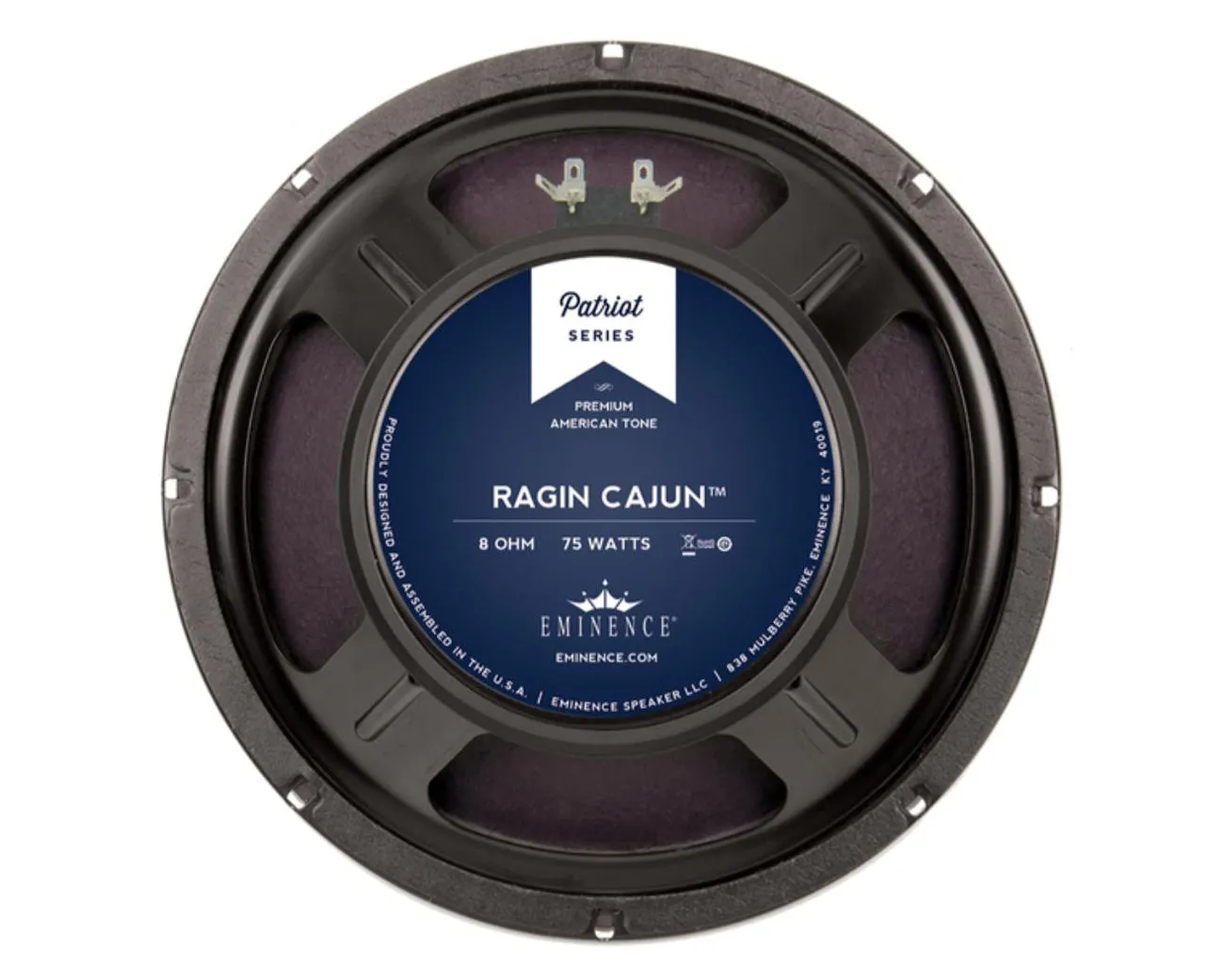

The Eminence Patriot Series Ragin Cajun 75 Watt, 10", 8 Ohm guitar speaker is very loud, touch sensitive and responsive with nice bell sounding top end and a little bite.

SPECIFICATIONS

• Nominal Basket Diameter: 10", 254 mm
• Nominal Impedance: 8 Ω
• Watts: 75 W
• Resonance: 84 Hz
• Usable Frequency Range: 80 Hz - 5 kHz
• Sensitivity: 100.5 dB
• Magnet Weight: 30 oz.
• Gap Height: 0.31", 7.9 mm
• Voice Coil Diameter: 1.5", 38 mm

MOUNTING INFORMATION

• Recommended Enclosure Volume: Sealed: Acceptable. Vented: Acceptable
• Driver Volume Displaced: 0.039 cu.ft. / 1.1 liters
• Overall Diameter: 10.11", 256.8 mm
• Baffle Hole DiameterL 9.13", 231.9 mm
• Front Sealing Gasket: Yes
• Rear Sealing Gasket: Yes
• Mounting Holes Diameter: 0.23", 5.8mm
• Mounting Holes B.C.D: 9.6", 243.8mm
• Depth: 3.8", 96.5 mm
• Net Weight: 6.4 lbs, 2.9 kg
• Shipping Weight: 8.2 lbs, 3.72 kgs

MATERIALS OF CONSTRUCTION

• Coil Construction: Copper voice coil
• Coil Former: Polyimide former
• Magnet Composition: Ferrite magnet
• Core Details: Non-vented core
• Basket Materials: Pressed steel basket
• Cone Composition: Paper cone
• Cone Edge Composition: Paper cone edge
• Dust Cap Composition: Zurette dust cap

Product Specs

• Item Number: 16200
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Made In: United States
• MPN: RAGINCAJIN
