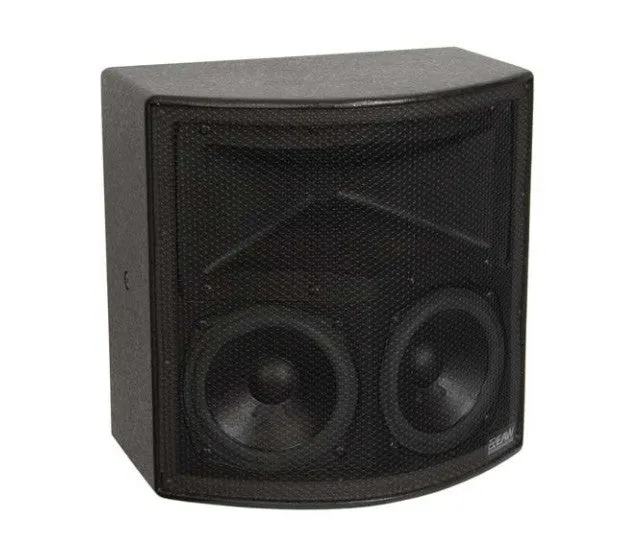

The UB22z is engineered for extra-wide-angled coverage (horizontal) from a wall mounted position. This ultra-compact loudspeaker provides surprisingly high output and exceptional fidelity for near field applications. It is highly effective as a fill/delay element in larger overall systems or for foreground/background music reproduction as a stand-alone loudspeaker or in distributed systems.

Because they are compact and lightweight, UB22zs install quickly and easily in difficult spaces. As components of larger overall systems, the UB22z series can be used to provide underbalcony,overbalcony, and side box area coverage. Applications as fill/delay elements include large and small theatres and houses of worship. As a main system, they can be built into high definition, distributed systems for use in industrial or retail environments and as standalone or distributed loudspeakers for boardrooms, restaurants, offices, and transportation centers.

Foam-backed grilles hide the drivers from view for pleasing aesthetics. Side mounting points allow enclosures to be mounted in using accessory brackets. Additional mounting points accept an OmniMountr 30.0 Series or similar bracket. Standard colors are black and white. Other colors can be specified as a special order item.

Features:

• Ultra-compact 2-way system
• Wide projection pattern
• LF on angled baffles to maintain a wide upper/midrange beamwidth
• High output, high definition sound

Specifications:

• CONFIGURATION


• Subsystem
• Transducer: LF 2x 5.25-in cone; HF 1x 1-in exit, 44mm voice coil compression driver
• Loading: LF Sealed; HF CD horn


• Operating Mode
• Amplifier Channels: Single-amp LF/HF
• External Signal Processing: High pass filter


• PERFORMANCE


• Operating Range (-10 dB, Hz)
• 85 - 20k


• Axial Sensitivity (1W @ 1m, dB SPL)
• Full Range: 91


• Power Handling/Impedance (Watts @ Ohms)
• Full Range: 200 @ 8


• Calculated Maximum Output Peak (dB SPL)
• Full Range: 120


• Calculated Maximum Output Long Term (dB SPL)
• Full Range: 114


• Nominal Coverage (degrees)
• Horizontal: 120
• Vertical: 50


• Subsystems
• LF: 2x 5.25-in cone, sealed
• HF: 1-in exit compression driver, horn-loaded


• Powering
• Full range

Warranty:

• 6 Years
