Product Details
＋
Features Include

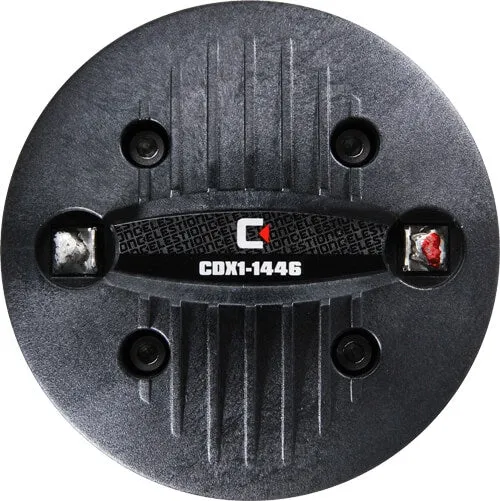

- 1" exit lightweight and compact ferrite magnet compression driver with 1.4" copper clad aluminium voice coil
- 20Wrms power handling (AES standard) and 106dB sensitivity

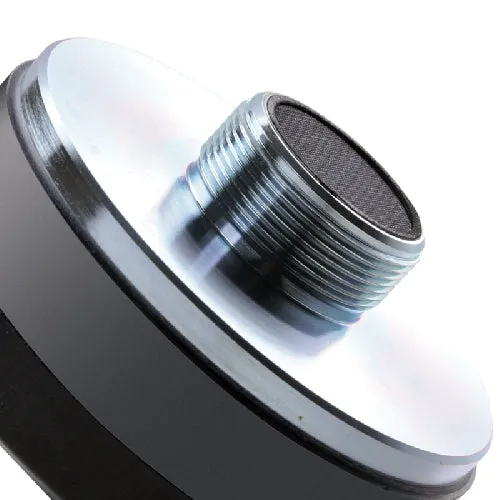

- 35mm/1.38in screw attachment
- One piece PETP diaphragm and surround
- Finite Element Analysis (FEA) techniques used to optimize both magnetic and acoustic design
- Suitable for 2-way and 3-way systems
General Specifications
Power rating: 20Wrms
Continuous power rating: 40W
Nominal impedance: 8Ω
Frequency range: 1500-20000
Sensitivity: 106dB
Recommended min. crossover (12dB/oct): 2200Hz
Voice coil diameter: 35mm/1.4in
Voice coil material: Round Copper Coated Aluminium
Magnet type: Ferrite
Diaphragm material: PETP film
Surround material: PETP film
Mounting Information
Width: 90.0mm/3.54in
Depth: 69mm/2.71in
Weight: 1.1kg
Fitting: Screw (35mm, 1.38in diameter)
Throat exit: 25.4mm/1.0in
Compatible Horns
H1SC-9040, H1SC-7050
