Name: Blackmagic ATEM 4 M/E Constellation HD
SKU: 1142262

Product Details ＋

Blackmagic ATEM 4 M/E Constellation HD

The massive 4 M/E model doubles the features of the 2 M/E model with 40 x 3G-SDI inputs, 24 x 3G-SDI outputs, 4 DVEs, 16 ATEM Advanced Keyers, 4 multiviews and 2 SuperSource for 12 x DVEs in total.

Connections

Total Video Inputs: 40

Total Video Outputs: 24

SDI Rates: 1.5G, 3G

Total Audio Inputs: 2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in., 1 x 5 pin XLR Talkback.

Total Audio Outputs: 2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out., 1 x 5 pin XLR Talkback.

SDI Audio Inputs: 2 Ch embedded audio on all SDI inputs.

SDI Audio Outputs: 2 Ch embedded audio on all SDI outputs.

Timecode Connections: None

Reference Input: Tri-Sync or Black Burst.

Video Input Re-Sync: On all 40 inputs.

Frame Rate and Format Converters: On all 40 inputs.

SDI Aux Outputs: Any of the 24 SDI outputs.

SDI Preview Outputs: Any of the 24 SDI outputs.

SDI Program Outputs: Any of the 24 SDI outputs.

Down Converted SDI Program Output: None

Webcam Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate.

Total Multi Views: 4 x 3G-SDI

Remote: RJ12 supports RS-422

Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.

Internal Timecode Generator: Yes

Talkback: RJ45 for 3rd party talkback systems.

Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

Ethernet: Supports 10/100/1000 BASE-T.

Computer Interface: 1 x USB-C supports USB 3.1 Gen 1 (5Gb/s)

Standards

SD Video Standards: None

HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.

Video Sampling: 4:2:2

Color Precision: 10-bit.

Color Space: REC 709

SDI Auto Switching: Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.

Multi View Monitoring

Multi View Monitoring: 4 x multi views each configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, M/Es, DSKs, SuperSource, Clean Feed with optional labels and audio meters.

Multi View Video Standard: HD

Display Minimum Resolution: 1366 x 768

Media Player

Media Players: 4

Channels: Fill and key for each media player.

Media Pool Still Image Capacity: 60

Media Pool Clip Capacity: 4 x up to 1080p60.

Media Player Clip Length in 720 HD: 1200 frames.

Media Player Clip Length in 1080 HD: 600 frames.

Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.

Media Pool Video File Format: TGA Sequence.

Media Pool Audio File Format: WAV, MP3 and AIFF.

Display

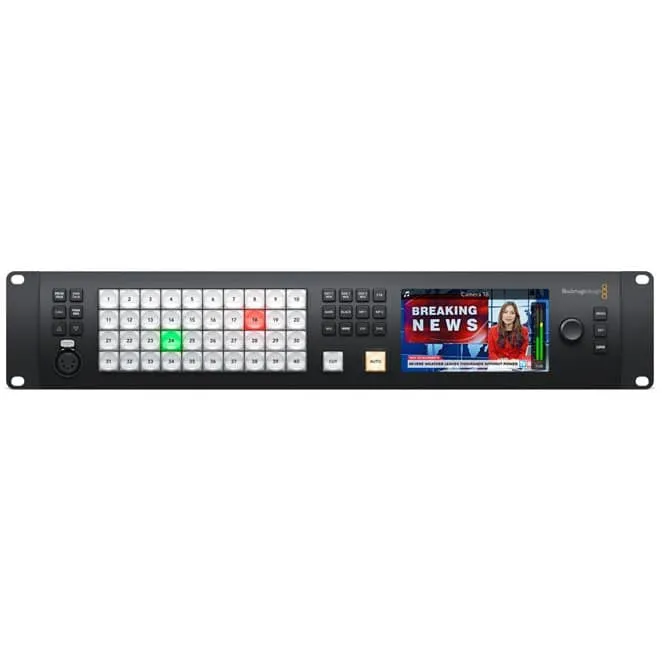

Front panel: Built in 5 inch HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock

button.

Processing

Processing Delay:

Audio Mixer: 156 Channel mixer, Selectable On/Off/Audio-Follow-Video., Level and Peak metering., Master gain control., 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.

Down Conversion: None

Software

Control Panel Included: ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11.

Software Updates: Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.

Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
