Product Details
＋

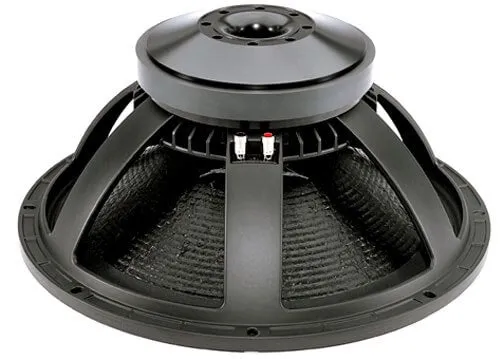

18" high efficiency subwoofer with 1200W RMS power handling, double silicone spider and ventilated voice coil gap for reduced power compression.
|
SPECIFICATIONS Nominal Diameter: Nominal Impedance: Nominal Power: Freq. Response: Sensitivity: Voice Coil Diameter: |
18", 457mm 8 ohms 1200 W rms, 2400 W program 35 Hz-1.0 kHz 97 db 1w/1m 4.0", 100mm |
|
MOUNTING INFORMATION Overall Diameter: Baffle Hole Dia: Mounting BCD: Depth: |
18.0", 460mm 16.60", 422mm 17.3", 440mm 8.2", 209mm |
|
T/S PARAMETERS Fs: Re: Le: Qms: Qes: Qts: Vas: Xmax: |
34.0 Hz 5.1 ohms 1.6mH 7.2 0.37 0.35 212 L, 7.49 cuft 9mm |
|
CONSTRUCTION -Cast basket -Ferrite magnet with vented voice coil |
