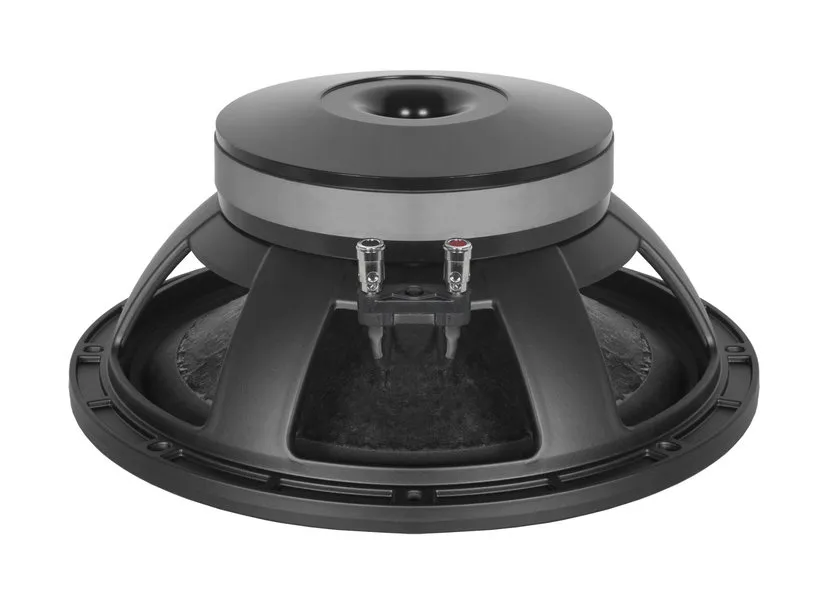

Name: B&C 12PLB76 - 8 ohm 12" 350W Ferrite 3.0" Voice Coil Woofer *Special Order*
SKU: 2235029

Product Details ＋

This is a special order item. Once an order has been placed we will order in this product for you after payment has been received. Order will be held until all items are ready to ship.

12" high efficiency woofer.

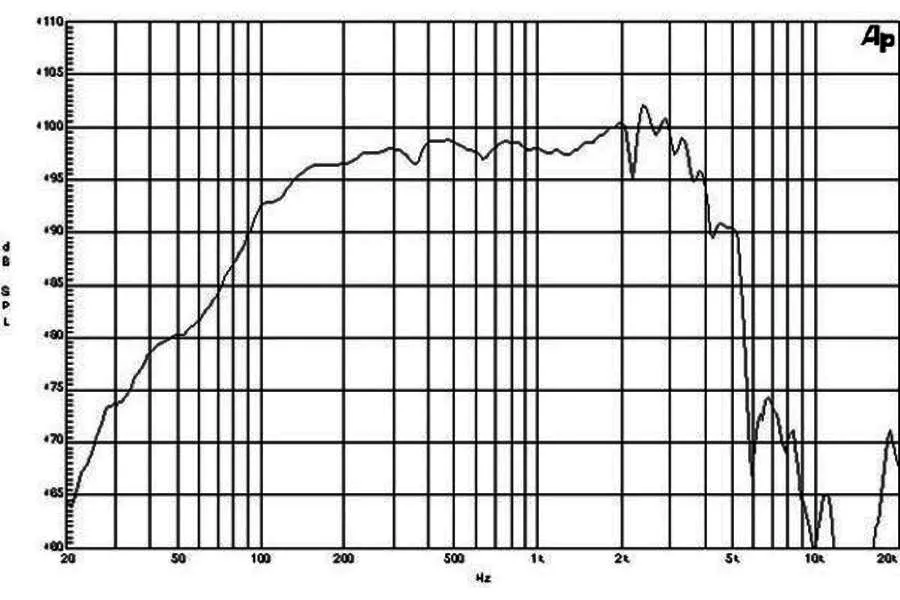

SPECIFICATIONS Nominal Diameter: Nominal Impedance: Nominal Power: Freq. Response: Sensitivity: Voice Coil Diameter:	12", 320mm 8 ohms 350w rms, 700w program 50 Hz-2.0 kHz 99 db 1w/1m 3.0", 76mm
MOUNTING INFORMATION Overall Diameter: Baffle Hole Diameter: Mounting Hole BCD: Depth:	12.4", 316mm 11.1", 282mm 11.6", 296mm 5.35", 136mm
T/S PARAMETERS Fs: Re: Le: Qms: Qes: Qts: Vas: Xmax:	50.0 Hz 5.0 ohms 1.2mH 5.3 0.24 0.23 75 L, 2.6 cuft 5mm
CONSTRUCTION -Cast basket -Ferrite magnet

B&C 12PLB76 - 8 ohm 12" 350W Ferrite 3.0" Voice Coil Woofer Special Order
