Product Details
＋
This is a special order item. Once an order has been placed we will order in this product for you after payment has been received. Order will be held until all items are ready to ship.

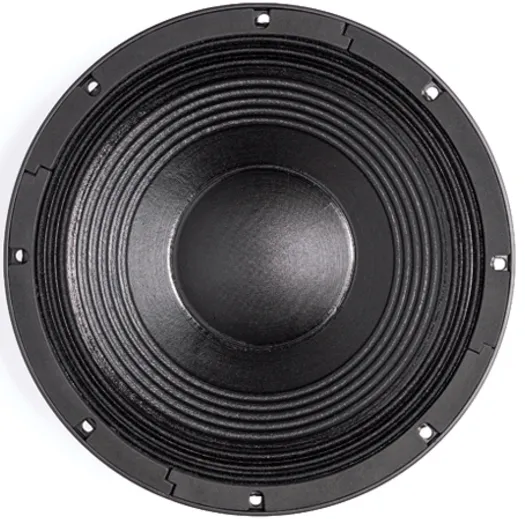

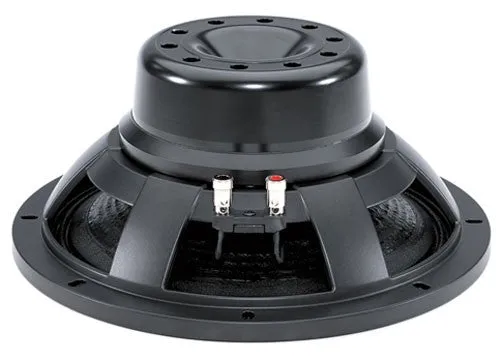

12" high efficiency Neodymium subwoofer.
|

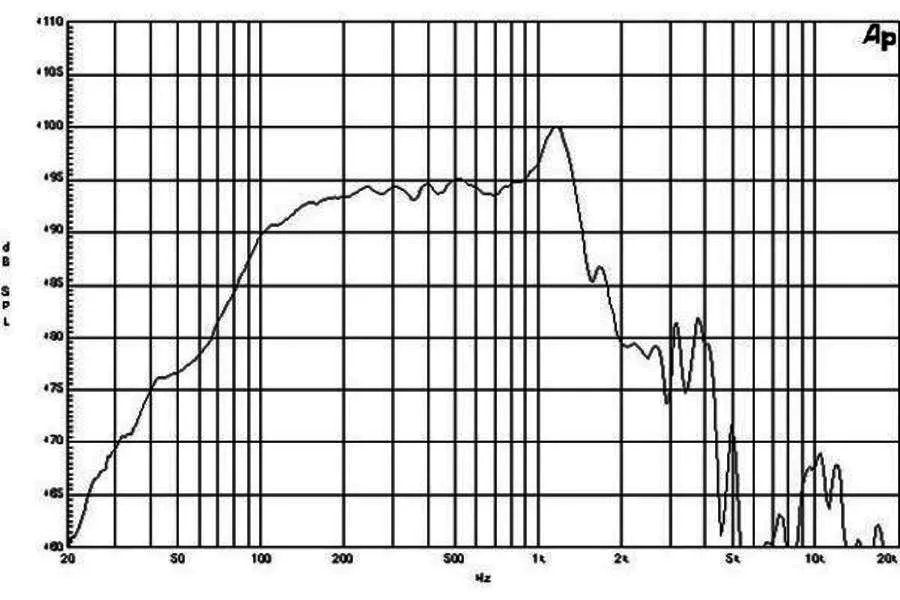

SPECIFICATIONS Nominal Diameter: 12", 320mm Nominal Impedance: 8 ohms Nominal Power: 1000w rms, 2000w program Freq. Response: 45 Hz-1.5 kHz Sensitivity: 96 db 1w/1m Voice Coil Diameter: 4.0", 100mm MOUNTING INFORMATION Overall Diameter: 12.5", 319mm Baffle Hole Diameter: 11.1", 281mm Mounting Hole BCD: 11.8", 299mm Depth: 5.4", 137mm |
T/S PARAMETERS Fs: 42.0 Hz Re: 5.1 ohms Le: 1.9mH Qms: 3.6 Qes: 0.21 Qts: 0.20 Vas: 44 L, 1.5 cuft Xmax: 9mm CONSTRUCTION -Cast basket -Neodymium magnet with vented voice coil Recone Kit: RCK12NW1008 |
