Atlas Sound FAPSUB 8 Inch Tuned & Ported Ceiling Subwoofer System
$
58.07
$
44.67
Title
Please select combo product attributes
The combo subtotal is $,SAVE
$
Unavailable
Quantity
-
+
ADD TO CART
BUY IT NOW

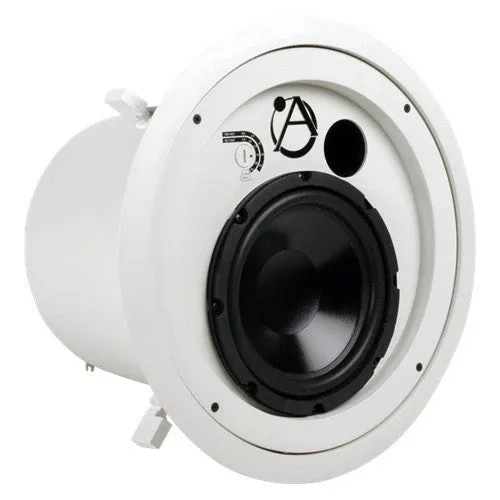

Atlas FAPSUB 8 Inch Tuned & Ported Ceiling Subwoofer System
The FAPSUB adds impressive low frequency response to any full range distributed system
The FAPSUB consists of a highly efficient 8", 8 ohm subwoofer designed and built by Atlas Sound to work optimality in the FAPSUB enclosure system. A highly efficient, 3-pole filtering network eliminates unwanted high frequencies from the woofer,while the 937 cubic inch, tuned and ported, deep drawn steel enclosure provides bass responsedown to 45Hz (±10dB).
A special low saturation 70.7V/100V transformer is included with 1.9, 3.8, 7.5, 15, 30 and 60 watt primary taps (@70.7V) to match and balance the subwoofer with full range speakers without the need for separate amplification. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling.This tap selector switch also includes a transformer bypass setting for 8 ohm direct coupled applications.
The FAPSUB adds impressive low frequency response to any full range distributed system
The FAPSUB consists of a highly efficient 8", 8 ohm subwoofer designed and built by Atlas Sound to work optimality in the FAPSUB enclosure system. A highly efficient, 3-pole filtering network eliminates unwanted high frequencies from the woofer,while the 937 cubic inch, tuned and ported, deep drawn steel enclosure provides bass responsedown to 45Hz (±10dB).
A special low saturation 70.7V/100V transformer is included with 1.9, 3.8, 7.5, 15, 30 and 60 watt primary taps (@70.7V) to match and balance the subwoofer with full range speakers without the need for separate amplification. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling.This tap selector switch also includes a transformer bypass setting for 8 ohm direct coupled applications.
- Attractive grille and bezel matches aesthetics of other Atlas Sound FAP Series
- Detachable, Phoenix style, locking, four-pole connector provides for easy daisy chain wiring
- Easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog leg" mounting system (included)
- Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
- High efficiency, passive crossover network eliminates the need for dedicated amplifier and/or active crossover
- Low crossover point greatly reduces localization (ability of listener to identify the subwoofer location)
- Uniquely designed, "easy access" input panel design allows for "thru" conduit runs using flexible or rigid conduit
- Depth 12 3/4" (32.385 cm)
- Diameter 15 3/4" (40.005 cm)
- Shipping Weight 21.50 lbs (9.75 kgs)
- Frequency Response 45Hz to 120Hz (?B)
- Power Taps 1.9, 3.8, 7.5, 15, 30 and 60W, 8 Ohm
- Speaker Type In Ceiling Sub
- Dispersion Omni
- Sensitivity 89dB Average
- UL Listed/Standard 1480
