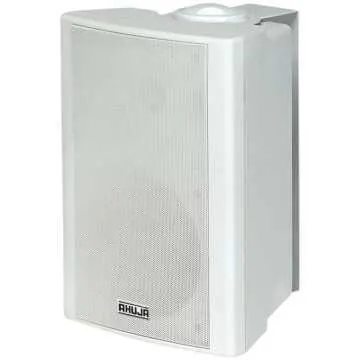

- This 2-way hi-fi speaker system is available in a stylish plastic cabinet in black or white (suffix B & BT denote black while W & WT denote white). It is suitable for various indoor and outdoor (under eaves) applications such as airports, banks, schools, hotels, restaurants, lounges, hospitals, and showrooms. It features a waterproof-coated cone woofer, a titanium dome tweeter, and a 2-way crossover network. ASX-312B and ASX-312W are 8-ohm low-impedance speakers while ASX-312BT and ASX-312WT operate on a 100-volt line with power taps of 30W, 20W, 15W, 10W, and 5W. A slotted rotary switch knob at the rear allows easy power tap selection and the ‘U’ type bracket ensures secure mounting on the wall.
Power Rating | 60W RMS/90W Max. |
Power Taps | 60W, 60/40/30/20/10W |
Impedance/Voltage | 8Ω / 100V |
Frequency Response | 50-20,000Hz |
SPL at 1kHz (1W/1m) | 87dB |
Speaker | Woofer 163mm (6½”), Tweeter 25mm (1”) |
Dimensions | W215 × H310 × D175 mm |
Weight | 3.22kg/3.80kg |
HOW IT WORKS:
The AHUJA ASX-612BT/WT 60 Watts 2-Way Compact PA Wall Speaker is easy to use. Simply select the desired power tap through a slotted rotary switch knob at the rear, mount the wall speaker using the 'U' type bracket, and then enjoy the high-fidelity sound quality from the Water-Resistant PP coated cone Woofer and Titanium Dome Tweeter.
