Product Details
＋
Overview

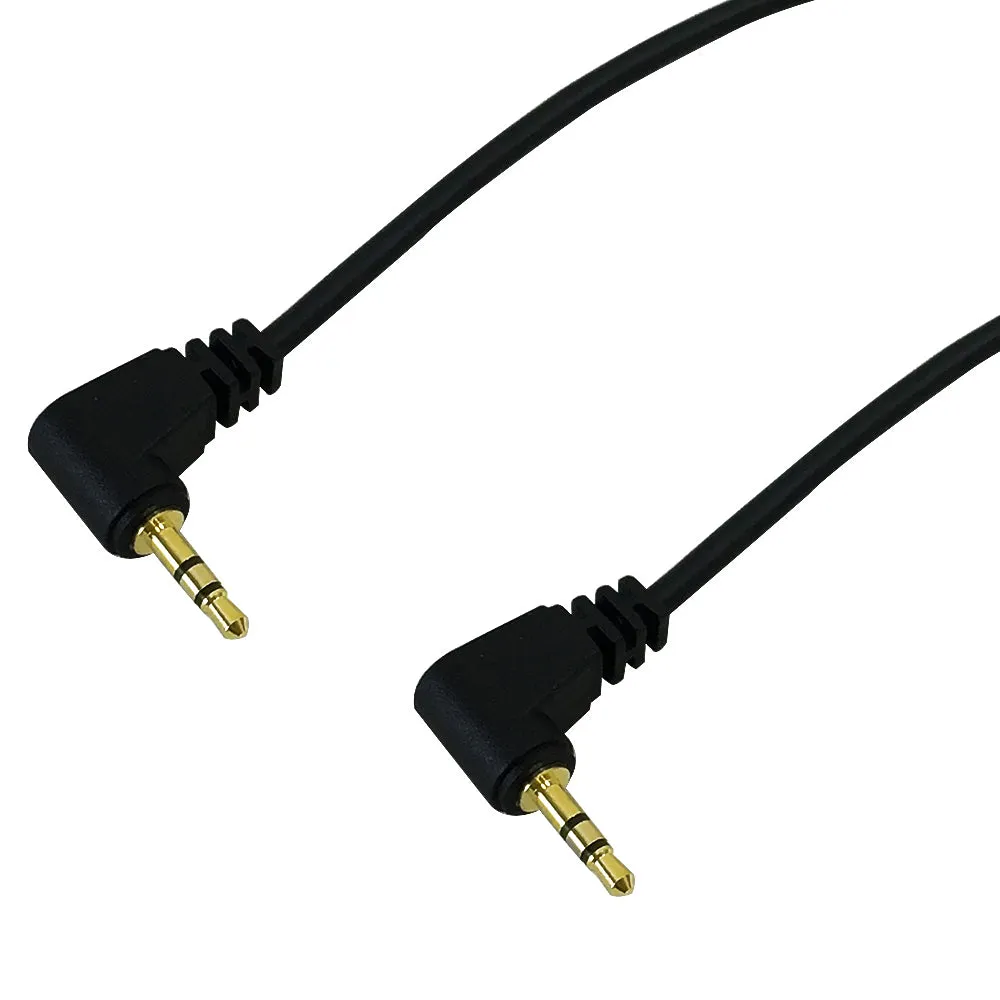

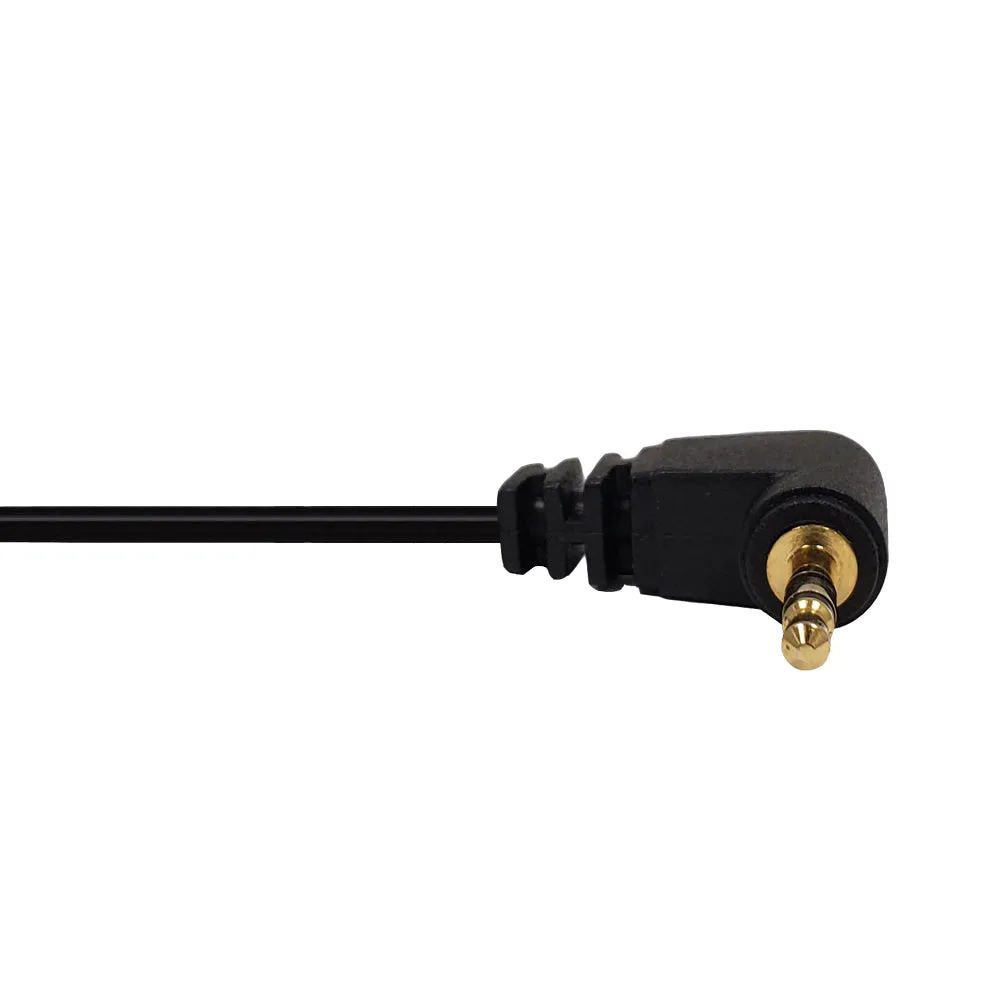

This ultra slim stereo audio cable has a 2.5mm male right angle on one end and a 2.5mm male right angle on the other. It is typically used to connect 2.5mm mobile devices such as some MP3 players and smart phones to 2.5mm stereo inputs. The right angle connectors and cable are designed to be lightweight, durable and fit perfectly in tight fit applications.
|
| Slim Connector DesignThe connector moldings have a slim profile to fit properly in today's compact electronic devices. Flexible Cable ShieldingThis audio cable features 85% tin copper spiral braid cable shielding for increased flexibility. Ultra-Thin Cable with a Riser Fire Rated JacketThe ultra-thin cable comes in a FT4 riser fire rated jacket for in-wall use. |
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 2.8mm |
| Wire Gauge | 28AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 85% Bare Copper Spiral |
| Storage Temperature | -10 „ƒ to 70 „ƒ |
| Operating Temperature | 0 „ƒ to 45 „ƒ |
Connectors | |
| Connector A | 2.5mm Stereo Male Right Angle |
| Connector B | 2.5mm Stereo Male Right Angle |
| Connector A Diameter | 7.5mm |
| Connector B Diameter | 7.5mm |
Approvals | |
| c(UL)us | Yes - Cable |
Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
Package Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 6ft | 10ft | 15ft | 25ft |
|---|---|---|---|---|---|---|
| 0.02 lbs | 0.05 lbs | 0.06 lbs | 0.07 lbs | 0.10 lbs | 0.15 lbs | 0.25 lbs |
