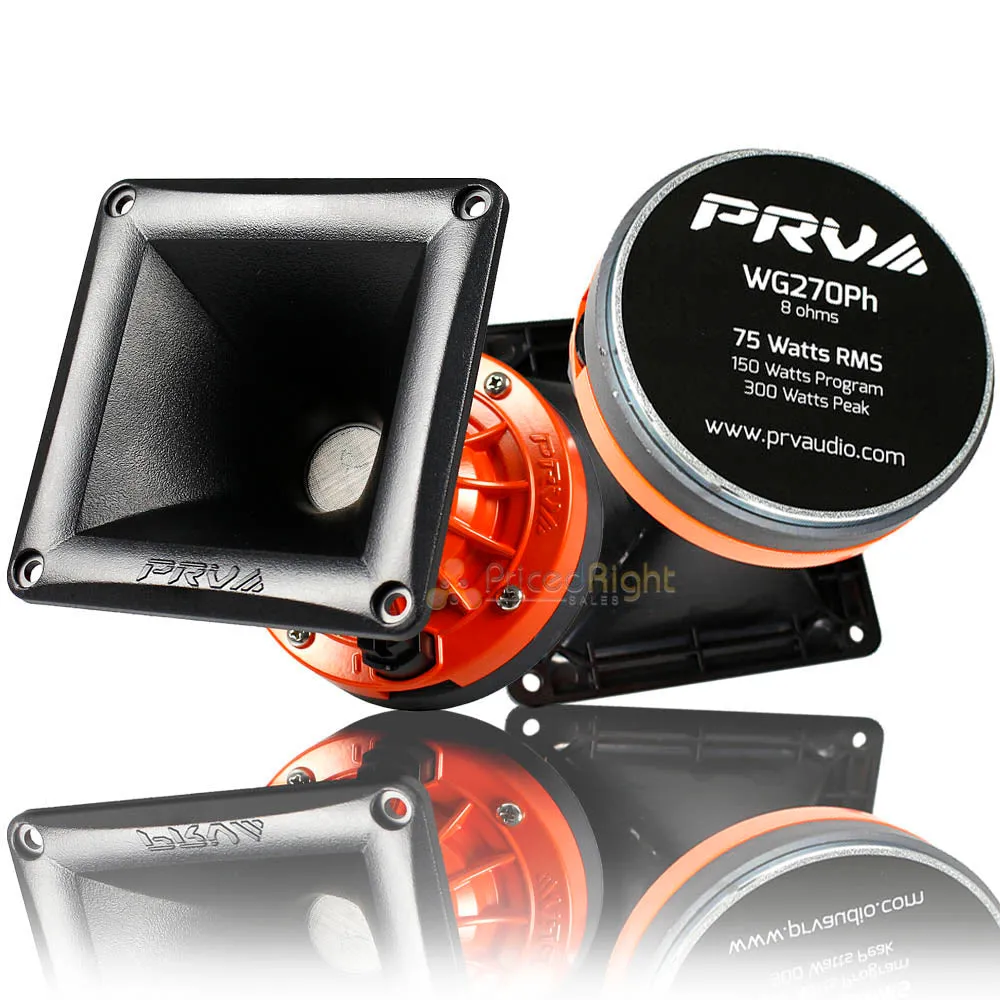

PRV High SPL 1" Phenolic Compression Driver with 4" x 4" Horn Combo WG270Ph
(2 Pack)

2 Pack of PRV Audio WG270PH 4" x 4" Compression Drivers. The high-temperature copper wire is used for the voice coil that is wound on a Kapton former to withstand high operating temperatures. The nearly-indestructible phenolic diaphragm, that can play down to 500 Hz, is built to resist the elements, perfect for outdoor use. The compact driver design makes for easy front mount installation without detaching the driver from the horn. This combo is all about high output, low distortion vocal reproduction, and is the perfect solution for use in high output PA systems.

Specifications per Driver:

• Exit Throat Diameter: 1” (25.4mm)
• Nominal impedance: 8 Ohms
• Rated AES Power Handling (RMS): 75 Watts
• Program Power: 150 Watts
• Sensitivity 2.83V at 1m: 106.5 dB
• Recommended Hi-Pass Crossover For Full Power Handling: 500 Hz**
 **12db Per Octave Crossover
• Frequency Response at -10dB: 600 – 8,000 Hz
• Voice Coil Diameter: 2″ (50 mm)
• Voice Coil Wire: Copper
• Voice Coil Former Material: Kapton
• Diaphragm Material: Phenolic
• Flux Density: 1.10 T
• Magnet Material: Ferrite

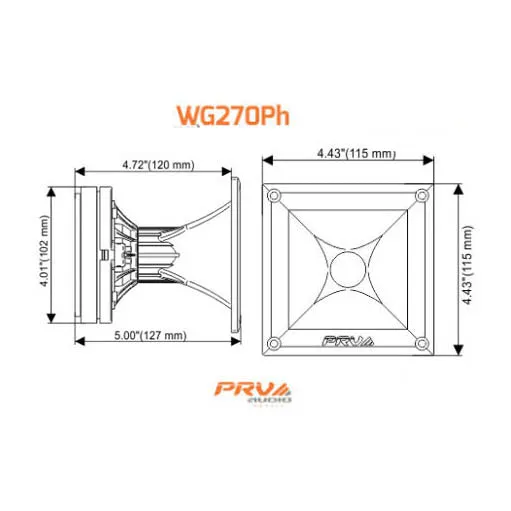

Physical Specifications:

• Overall Depth: 5.00” (127 mm)
• Mounting Depth: 4.72” (120 mm)
• Overall Width: 4.43” (115 mm)
• Overall Height: 4.43” (115 mm)
• Baffle Cutout Diameter: 4.01” (102 mm)

You will receive 2 PRV Audio Compression Drivers
